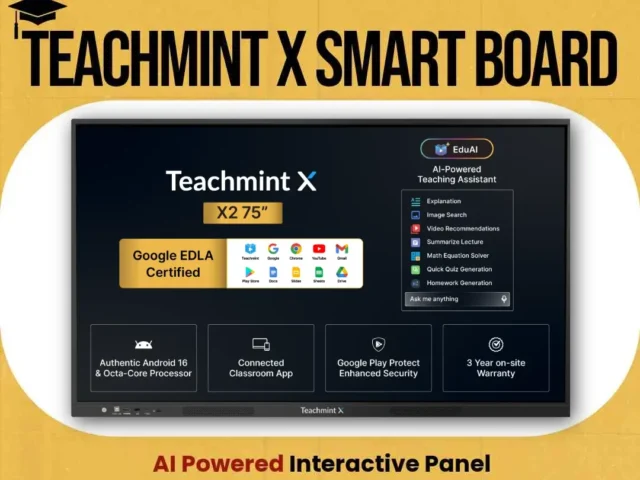

Teachmint X2 75-Inch Interactive Flat Panel with 4K Camera
Product Overview
The Teachmint X2 75-Inch Interactive Flat Panel with Camera is an advanced interactive display designed for modern classrooms, educational institutions, corporate offices, meeting rooms, and online teaching studios. Featuring a 75-inch True 4K UHD display, an integrated 48MP 4K camera, an 8-array omnidirectional microphone system, and powerful 40W inbuilt speakers, it provides an integrated solution for interactive teaching, video conferencing, presentations, and collaborative learning.
Powered by an Octa-Core RK3576 processor, 8GB RAM, 128GB internal storage, and Android 16.0 EDLA, the X2 combines responsive touchscreen interaction with modern computing capabilities. Its 40-point multi-touch technology, zero-bonding display, dual-band Wi-Fi, and onboard AI processing make it suitable for interactive learning environments and professional collaboration spaces.
Key Features of the Teachmint X2 75-Inch Interactive Panel
1. 75-Inch True 4K UHD Display
Experience detailed visuals on a large 75-inch display with a resolution of 3840 × 2160 at 60Hz. The 4K UHD screen is suitable for displaying presentations, educational content, videos, diagrams, and detailed visual material.
- 75-inch large-format display
- True 4K UHD resolution
- 450-nit brightness
- 10-bit colour depth supporting 1.07 billion colours
- Zero-bonding display technology
- 3.2mm toughened glass with claimed Mohs Level 9 hardness
- Typical backlight lifetime of 60,000 hours
2. Integrated 48MP 4K Camera
The built-in 48MP 4K camera supports online teaching, virtual classrooms, video meetings, and remote collaboration without requiring a separate external camera for basic use.
3. Built-In 8-Array Microphone
The integrated 8-array omnidirectional microphone system is designed to capture voices from multiple directions, supporting online lessons, conference calls, and hybrid meetings.
4. Powerful 40W Inbuilt Speakers
The integrated 40W speaker system delivers sound for classroom instruction, video conferencing, multimedia presentations, and educational videos without necessarily requiring external speakers.
5. 40-Point Multi-Touch Interaction
The interactive touchscreen supports up to 40 simultaneous touch points, enabling multiple users to write, annotate, draw, and interact with on-screen content.
- Up to 40-point touch
- Touch response time of ≤5ms
- Display response time of ≤5ms
- Suitable for collaborative classroom and meeting-room activities
6. Powerful Octa-Core Processor
The RK3576 Octa-Core processor combines four ARM Cortex-A72 cores running at up to 2.2GHz with four ARM Cortex-A53 cores running at up to 2.0GHz. The Mali-G52 MC3 GPU supports graphics processing for interactive applications and multimedia content.
7. 8GB RAM and 128GB Storage
With 8GB RAM and 128GB internal storage, the panel offers resources for compatible applications, teaching materials, presentations, and other supported content.
8. Android 16.0 EDLA
The panel runs Android 16.0 EDLA, providing an Android-based platform for compatible applications and interactive workflows. Application availability and functionality depend on software compatibility and device configuration.
9. Onboard AI Processing
The integrated Neural Processing Unit (NPU) offers a stated AI processing capability of 6.0 TOPS, supporting compatible on-device AI workloads and applications.
10. Dual-Band Wi-Fi and NFC
The panel supports dual-band Wi-Fi on 2.4GHz and 5GHz networks and includes an inbuilt NFC card reader for compatible NFC-based workflows.
11. Designed for Extended Use
The display is specified with a typical backlight lifetime of 60,000 hours, making it suitable for environments that require regular use throughout the working day.
Technical Specifications
Display and Touch
| Specification | Details |
|---|---|
| Model | X2 75-Inch (With Camera) |
| Screen Size | 75 inches (1.89m, as specified) |
| Display Resolution | True 4K UHD, 3840 × 2160 @ 60Hz |
| Brightness | 450 nits |
| Zero Bonding | Yes |
| Display Colour Depth | 10-bit / 1.07 billion colours |
| Glass | 3.2mm toughened glass |
| Glass Hardness | Mohs Level 9, as specified |
| Display Response Time | ≤5ms |
| Touch Technology | 40-point touch |
| Touch Response Time | ≤5ms |
| Typical Backlight Lifetime | 60,000 hours |
Processor and Operating System
| Specification | Details |
|---|---|
| Processor | RK3576 Octa-Core |
| CPU Configuration | 4 × ARM Cortex-A72 @ 2.2GHz + 4 × ARM Cortex-A53 @ 2.0GHz |
| GPU | Mali-G52 MC3 |
| RAM | 8GB |
| Internal Storage | 128GB |
| NPU | Onboard AI, 6.0 TOPS |
| Operating System | Android 16.0 EDLA |
Camera, Audio and Connectivity
| Specification | Details |
|---|---|
| Inbuilt Camera | Yes |
| Camera Resolution | 48MP, 4K |
| Inbuilt Microphone | 8-array omnidirectional |
| Inbuilt Speakers | 40W |
| Wi-Fi | Dual-band 2.4GHz and 5GHz |
| Inbuilt NFC Card Reader | Yes |
Power and Durability
| Specification | Details |
|---|---|
| Power Consumption | <380W |
| Glass Thickness | 3.2mm |
| Typical Backlight Lifetime | 60,000 hours |
Applications and Use Cases
The Teachmint X2 75-inch interactive smart board is suitable for a variety of professional environments.
- Schools and colleges: Interactive lessons, digital teaching, classroom presentations, and collaborative activities.
- Coaching centres: Concept explanations, digital notes, diagrams, and multimedia-based teaching.
- Online educators and teachers: Online classes, video lessons, remote teaching, and educational content delivery.
- Corporate offices: Business presentations, team discussions, training sessions, and collaborative meetings.
- Meeting and conference rooms: Video conferencing and hybrid collaboration using the integrated camera and microphone.
- Training centres: Interactive demonstrations, workshops, and professional development sessions.
Included Accessories
The package includes the following accessories, according to the supplied product specifications:
| Accessory | Quantity |
|---|---|
| Interactive Flat Panel | 1 |
| Remote Control | 1 |
| Stylus Pens | 2 |
| Power Cord | 1 |
| User Manual | 1 |
| Warranty Card | 1 |
| Installation Documents | 3 |
| Wall Mount Kit | 1 |
Buy the Teachmint X2 75-Inch Interactive Panel in Srinagar
Looking for a 75-inch interactive smart board in Srinagar or Kashmir? Sparks AV helps educational institutions, businesses, and professional users choose suitable interactive display solutions for their requirements.
Contact Sparks for product pricing, availability, technical details, installation requirements, and assistance with selecting an interactive panel for your classroom, coaching centre, office, or meeting room.
Sparks — Technology Solutions Provider for Education, Business & Hospitality
- Location: Nowgam Bypass, Srinagar, Jammu & Kashmir
- Phone: 8899788118
- Website: https://sparkspower.in
Specifications are based on the product information provided and should be confirmed with the manufacturer or authorised supplier before purchase. Actual performance, compatibility, accessories, warranty terms, and availability may depend on the supplied configuration.
